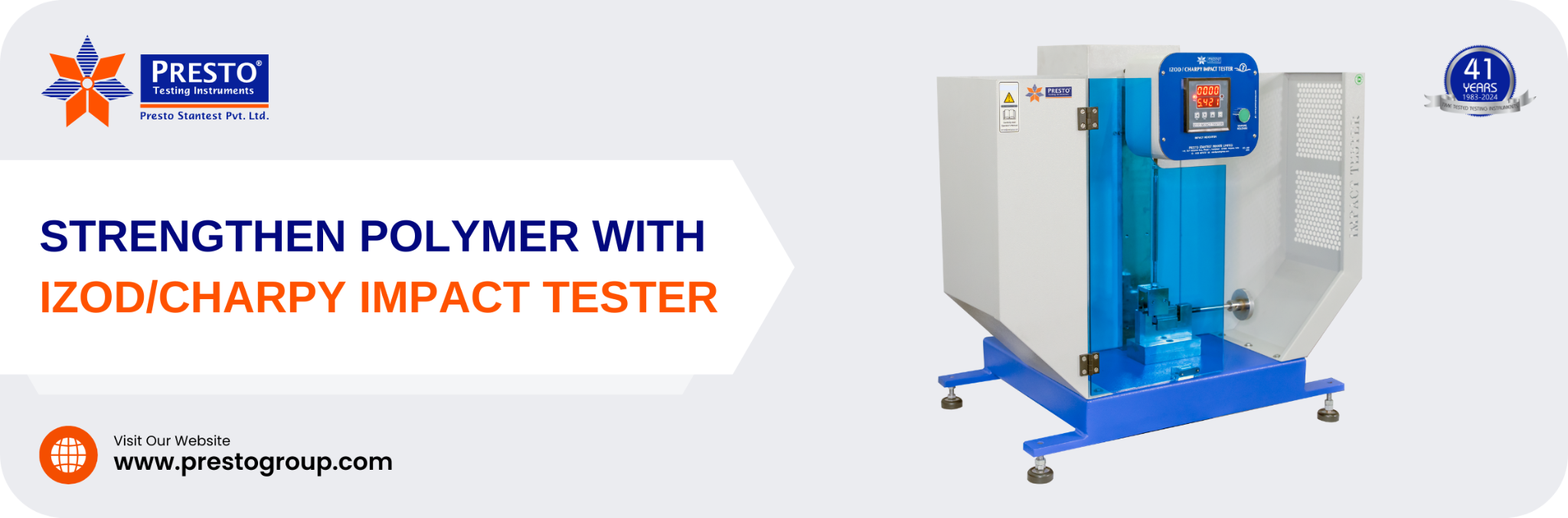

Izod Impact Tester is an instrument designed with precision and high-quality manufacturing to check the strength of the polymer in case of an impact or collision. The instrument conducts Izod and Charpy impact test to assess the accurate impact resistance of the tested polymer specimen. This is certainly important before utilizing polymers in appliances and devices to ensure the durability of the surface of the polymer as well as the device and appliance.
The equipment holds sheer importance in the plastic material manufacturing or polymer industry because it becomes vital to test the polymer’s strength to withstand collisions before using them in devices and appliances exposed to the environment.
How does an Izod Impact Tester Work?
The instrument consists of various elements to perform both Izod and Charpy impact tests. The operation starts after creating a notch of 2.5 mm on the specimen as per the standards before placing it between the jaws of the instrument followed by clamping the specimen tightly between the jaws to ensure stability while performing the impact test. The Izod Impact Tester includes a hammer at the top which is held by a holder to stand upright before commanding the instrument to release the hammer in order to break the specimen. The hammer comes with variations ranging from 0.1J to 25J namely R1, R2, R3, R4 & R5.
To perform the Izod Impact test, the specimen is clamped in a vertical position between the jaws after creating a notch. The hammer with the required weight respective to the strength of the polymer is released from the holder and impacts the specimen justifying the impact energy used and thus the strength of the polymer to withstand impacts and collisions. It is very important to close the door attached with a magnetic locking system to avoid any discrepancies or altercations caused during the breaking of the specimen.
Performing a Charpy test is very similar to the Izod test except the size of the sample and the positioning of the sample is varied. The Izod impact test specimen is smaller than the specimen used in the Charpy impact test. The specimen in this test is also clamped horizontally rather than vertically between the two jaws. The release of the hammer and impact remains exactly like how it was in the Izod impact test. Closing the door is equally important as mentioned in the Izod impact test. By placing an izod impact test specimen accurately for conducting the quality test, you can easily ensure accuracy of testing results.
Performing both tests is extremely crucial to derive the accurate strength of the plastic specimen to withstand impacts because only then the plastic material manufacturer will be able to make the necessary changes required to fulfill the flaws of the polymer made.
Features of Izod Impact Tester
Izod Impact Tester is a feature-loaded equipment manufactured by the Presto Group to deliver a hassle-free experience while determining the strength of a polymer whether during Izod impact or Charpy impact.
The machine provides a hefty power of up to 25 joules enabling extremely hard, strong-strength polymer specimens to be tested accurately as it is equipped with different hammer sizes for attaining the angular force and displacement precisely.
Impact Izod Tester also secures the provision of electromagnetic pendulum release that ensures a high level of accuracy while deriving the results of the test which are amalgamated with feather touch controls as well as an inbuilt calibration facility which makes the working of the machine highly simplistic and also curates the operator while conducting tests.
The instrument also displays the angular displacement derived from the application of angular energy due to the pendulum effect of the hammer which makes the understanding of the readings easy to read and record for conducting further tests.
The enabling of dual tests on the equipment proves to be cost-efficient for the customer as both the tests, whether the Izod impact test or Charpy impact test can be performed on the same device due to the presence of separate fixtures.
The jaws of the Izod Impact Tester are made with stainless steel material and the rest of the instrument is made with mild steel along with the coating of powder paint to enhance longevity by reducing the chances of corrosion thus making the instrument corrosion-resistant. The jaws of the machine are also textured from the surface facing the specimen to ensure that the clamping is done tightly and thus make sure the specimen does not move at all while performing the test.
The blue & gray color scheme used contributes toward the beautiful aesthetic of the machine along with the sense of a classic Presto machine.
Presto Group also offers an optional instrument along with this equipment to ensure higher accuracy with the name of Notch Cutter for Impact Tester. The foremost function of the device is to create a notch on the specimen that is going to be tested to derive the perfect angular force by the Izod Impact Tester. The notch that is made out holds compliance with the standards as the dimension of the notch is 2.5 mm, V-shaped.
The Izod Impact Testing Machine has stood out from all the competitors available in the lab testing market due to the provision of so many features along with hassle-free usage and customer-friendly manufacturing.
Conclusion
Izod Impact Testing Machine is an extremely important and vital product in the polymer industry ensuring the polymer strength with the help of electromagnetic mechanism, and achieving accurate results consistently over the period of time. The machine is a feature-loaded product by the Presto Group assuring a cost-efficient factor by the provision of dual test technology due to the availability of both Izod and Charpy fixtures enabling the machine to perform both Izod and Charpy impact tests on the specimen.
Get Izod Impact Tester
The machine is a well-designed & well-manufactured product by the Presto Group. The equipment along with the additional accessory is available on the website of Presto Group. To find out the izod impact tester price or to get your queries answered you can simply contact us at +919210903903 or feel free to Email us at info@prestogroup.com.
